Industrial Scanner 3D Model Creator for Furniture|Die|Mould
Product Name:
Industrial Scanner 3D Model Creator for Furniture|Die|Mould
No. :
No. EA-COM16
:
:

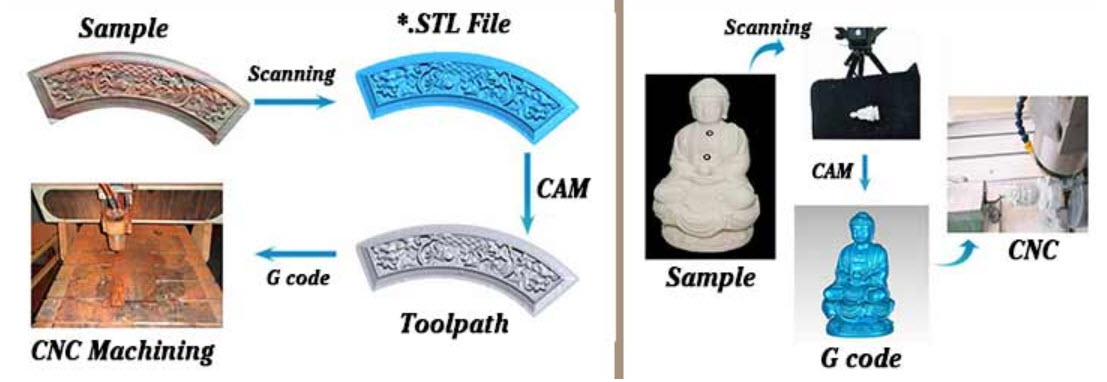

Industrial scanner is a 3d modeling tools for 3d model creation. It is a kind of accessory equipment of cnc machines. It analyses a real-world object to collect data on its shape and possibly its appearance. The collected data can then be used to construct digital

three-dimensional models in the software FlexScan 3D and GeoMagic which are provided together with the scanner. As we know, the tradition way to creat 3d model is by CAM design software, but the 3d scanner makes this job much easier than using software. As long as you have real-world object, you can get 3d models of it via 3d scanner just within several hours. No matter you are furniture factory or die & mould factory, this 3D industrial scanner is a good assistant for your production.

industrial scanner

What benefit you can get if using this scanner?

1. It takes about several days to finish a 3d model if you using the CAM design software; but it only takes several hours and possibly less than one hour for industrial 3d scanner to create one piece of same model.



2. To use the software to make models, you have to first learn how to use the software and this course needs two or three months; the course to learn how to use industrial scanner only needs 3 or 4 days.
industrial 3d scanner equipment


Application

To create 3d models in industry like mold making, sculpture, furniture, art works, cast industry, shoes making and more.

Want to see how it works? Please click the video here.

Features

3D scanners are usually tripod mounted. Scan data is obtained shot by shot, as a grid of light is projected and laid over the component being scanned. As a scan is completed the grid is modified, and the scanner determines the 3d coordinates by calculating the returned patterns.

Here is more photos of this industrial 3D scanner from full views:



Industrial 3d Scanner Machine Introduction:

1.) Portable design: Small size, small footprint, no noise easy to disassembly and installation, very convenient to carry.
2.) "One-click" marks all points automatic splicing: Automatic splicing times of scanning data, the process is complete with “one-click”. Without manual intervention, no third party software, to ensure that the data does not appear stratified phenomenon.
3.) Non-contact scanning: Measurement without contact with anything, can easily measure the soft, easy to deformation objects; And can be move scanner when scanning large heavy objects, there is no limit to the trip.
4.) The noise of the point cloud processing and trim:  Can pruning and eliminate noise during scanning and at the end of the scanning. Due to use of high-end industrial lenses and original software de-noising module, can overcome the domestic like product cannot solve noise and floating point problem, save your post-processing and modification time.



Specification

1) Double 1.3M or 3M MV Camera made by Germany.

2) Machine vision camera lens made by Japan.

3) Projector made by USA/Taiwan

4) Tripod made by Taiwan

5) Photogrammetry Data Alignment

6) Size per frame: 320×240mm/f[M] 480×360mm/f[L]

7) Object size range: 5mm-5000mm

8) Precision: 0.02mm

9) Mesh: 0.07-0.15mm

10) Net weight 7.5KGS
11) Software: GeoMagic, FlexScan 3D (provided together with scanner)


Welcome your inquiry!
