1530 ATC Wood CNC Router With Linear Auto Tool Changer
Product Name:
1530 ATC Wood CNC Router With Linear Auto Tool Changer
No. :
EA-1530LAT
:
:

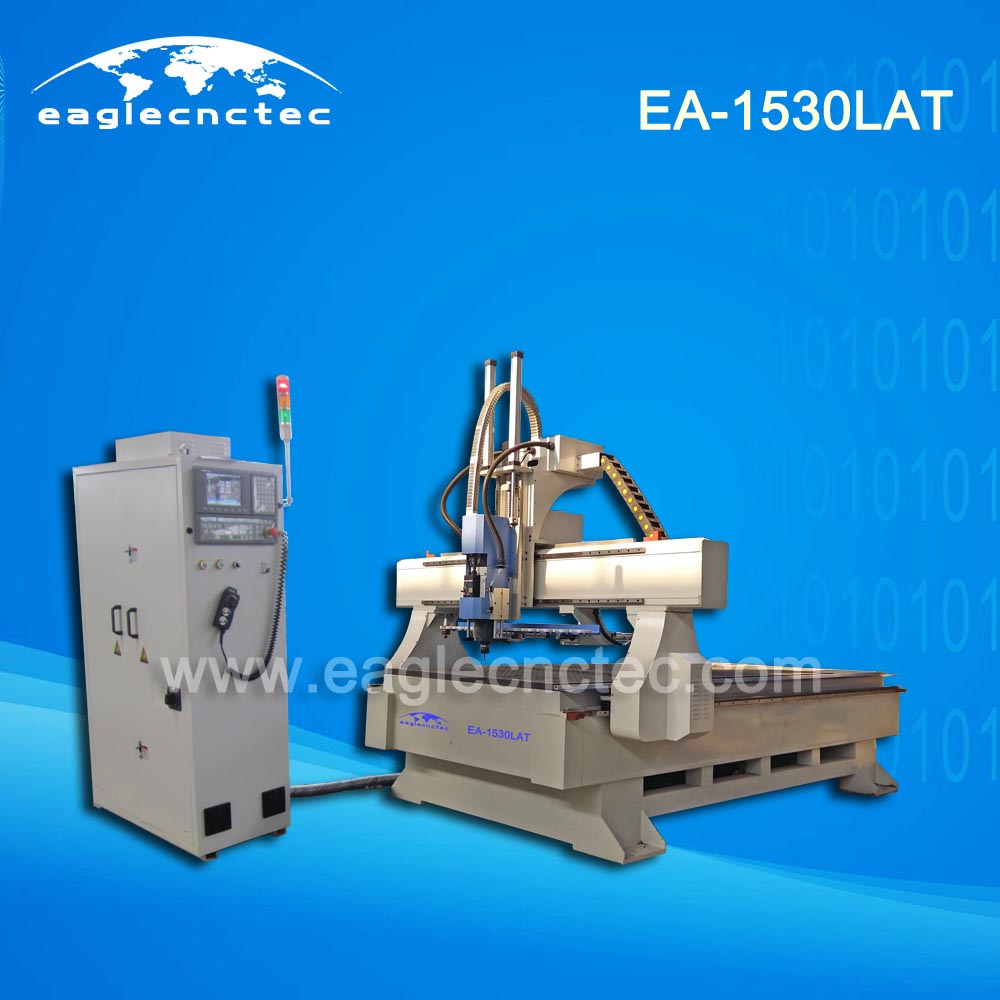

ATC CNC Router Model.EA-1530LAT is designed for panel furniture production. Linear auto tool changer is mounted under the gantry, by this design, it shorten the time of tool changing process compared with the design which mounted at the end of table. Every woodworker knows that, we must use multiple tools to finish one job of panel furniture. Each tool machining will not take long time, just several minutes. If without auto tool changer, we have to stop machine, change the tool, set origin and starts machining every time. Undoubtedly, this process will be time costly. And the result is low efficiency and low production. While, the auto tool changer optimizes this process. With it, the tools changed automatically without machine stop. This speed up the production process largely. So for panel furniture industry (also known as plate furniture) includes doors, cabinet, kitchen, office furniture, bed and so on, it’s better to use a auto tool changer cnc router; if want a simple operation machine, at least with pneumatic tool changer.

atc cnc router with linear tool changer
linear auto tool changer

Application

Material: Solid wood, MDF, plastic, PVC, acrylic, and other nonmetal materials.

Field: Cabinet, Wood door, Wardrobe, kitchen, office furniture, bed and etc.


Features

1) Fast and precise with servo motors, quiet operation. This is a close loop servo driven system, which is a higher performing and zero maintenance system. Further the motors are very smooth running and have very good acceleration and deceleration charactics.

2) Linear style automated tool changer with 8 tool positions in total.

3) The X and Y axis motion is via a rack and pinion drive, which is hardened for extremly long life and ground for a very good accuracy; The Z axis is driven by means of a hardened antibacklash ball-screw.

4) The Y-axis uses a dual drive, one for each side of the gantry.

5) Gantry is made of steel, unlike others who adopt aluminum materials. A steel gantry is superior to a aluminum in it’s ability to suppress and absorb the forces created during cutting.

6) Advanced Taiwan SYNTEC control system with separate keyboard and color LCD screen. It is an industrial computer.

7) All the linear guides are centrally lubricated from a central system.

8) Vacuum table with 8 vacuum zones.

9) This is 1530 cnc router, smaller size 1325 ATC cnc router available also.


Technical Parameter

Working Size (X Y Z)

1500×3000×300 mm

Driving Motor

Servo - Brand Delta

Controller

SYNTEC

Command

G-code

Max.Traveling Speed

60,000 m/min

Max.Working Speed

45,000 m/min

Work-Holding

By vac-sorb or by clamp, both available

Vacuum Pump

5.5KW, air-ring, 160CBM/hour flow rate

X Y Transmission

Helical rack and pinion , HIWIN square linear guide way

Z Transmission

Taiwan TBI rolling ballscrew , HIWIN square linear guide way

Spindle

9.0kw , air cooling, 0-24000 rpm variable speed (HSD from Italy)

Tool Magazine

Linear Style, 8 position

Tool Shank

ISO30, 8 pieces provided for free

Collet Size

ER32, available diameter of cutter  φ3.175-φ18mm

Tool Sensor

Included

Working Power

AC 380V/50-60Hz, 3 Ph 4 Wire

Max.Power Consumption

22KW

Net Weight

1700 KGS

Packing

Plywood case suitable for sea shipment


Optional Configuration of 1530 ATC CNC Router

Spindle: Chinese brand

Servo: Yaskawa

Working Size: 1325 or customized
