Products

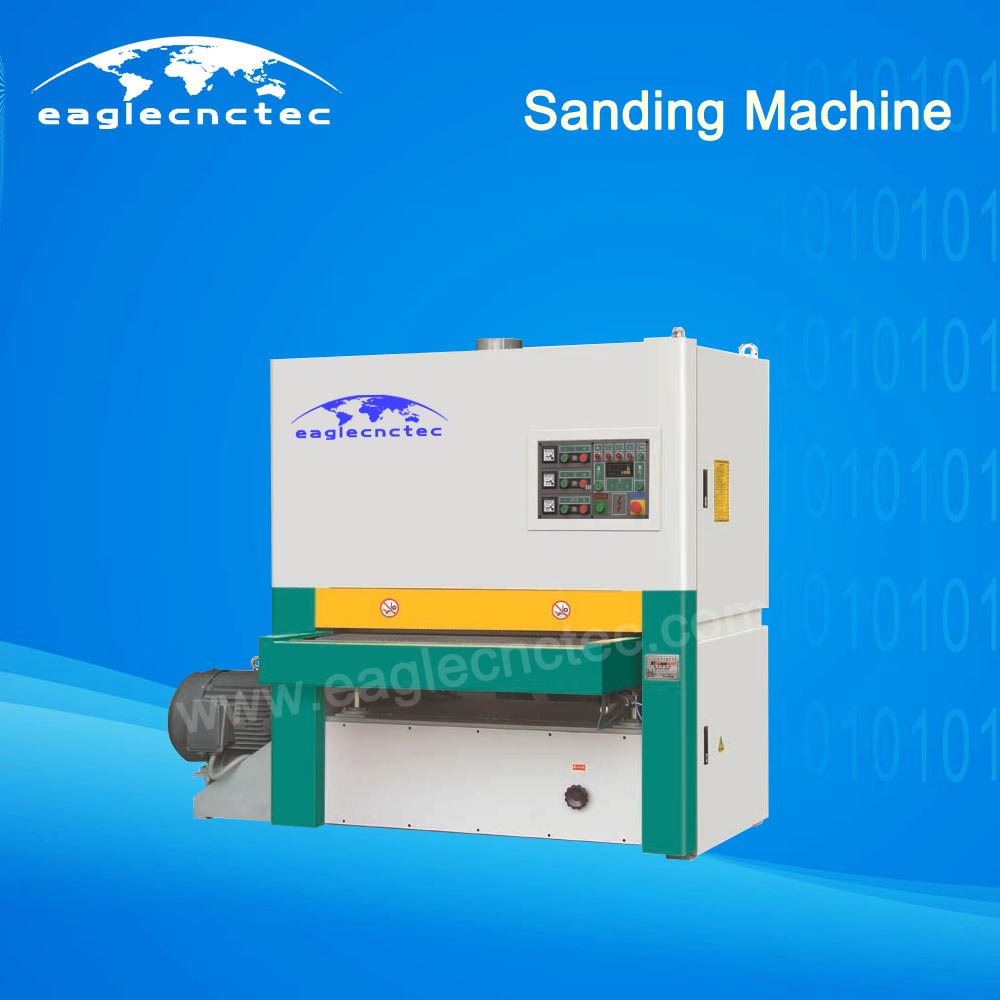

Wide Belt Sander Woodworking Sanding Machine

Wide belt sander, also known as woodworking sanding machine, is a large sander used for mainly manufacturing furniture and cabinets. It is the next production progress of CNC router.
wide belt sander

Application

1. The belt sander suits for finish sanding of solid wood, bamboo wood, panel furniture, wood door and widows, veneer board, laminated wood etc.

2. It suits for calibrating and polishing all kinds of panels which thickness deviation is big.


Technical Parameter

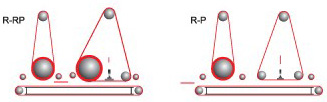

RRP

Parameter

1300mm(R-RP)
sanding machine

1300mm(R-P) sanding machine

Min.working length

180mm

480mm

Working thickness

2.5mm-90mm

2.5mm-90mm

Speed of abrasive

20m/s   18m/s

20m/s  18m/s

Feeding speed

6-30m/min

6-30m/min

Total motor power

56.37kw(30/22/4)

49.37kw(30/15/4)

Dimensions of abrasive belt

2200*1330mm

2200*1330mm

Working air pressure

0.6Mpa

0.6Mpa

Volume of sucked air

9000m3/h

9000m3/h

Overall dimensions

2600*2100*2150mm

2600*2100*2150mm

Net weight

3300kg

3100kg
