This product is Leadshine hybrid servo HBS1108AC cnc router easy servo pack. It is consisted by two parts: the driver model - HBS1108AC and the motor model - 86HBM80H-1000 or 86HBM80H-BZ-1000. The difference between both is: 86HBM80H-1000 without holding brake, while 86HBM80H-BZ-1000 with. Leadshine hybrid servo pack HBS1108AC is widely used on nesting cnc router and pneumatic atc cnc router as the drving uint.

If you want a bigger model, please check leadshine HBS2206

Leadshine Easy Servo Driver 1108 Features

1. Using latest 32 - bit DSP chip especially for motor control purpose.

2. Adopting advanced vector type closed loop control technology, no losing step.

3. The driver HBS1108AC has a trapezoid wave test function.

4. Static current and dynamic current can be set arbitrarily.

5. Suitable for driving NEMA34 (86 Series) hybrid servo motors.

6. Optocoupler isolation signal input.

7. Six-digital led screen is convenient to set parameters and monitor the running state of the motor.

Leadshine Hybrid Servo Driver HBS1108AC Technical Parameter

Input Power Voltage | 70 ~ 110V AC

Continuous Output Current | 0 ~ 8A

Impulse Response Frequency | 200KHz

Subdivision Set Range | 200 ~ 51200ppr

Protection Type | Over-voltage, Over-current, Tracking error excess

Logic Input Current | 7 ~ 20 mA

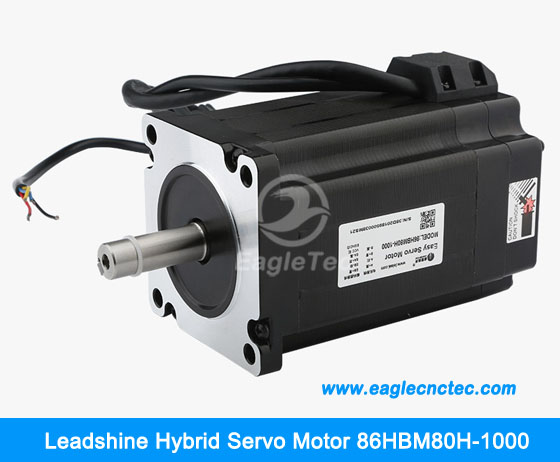

Leadshine Hybrid Servo Motor 86HBM80H-1000 / 86HBM80H-BZ-1000 Features

1. With built-in 1000 wire incremental photoelectric encoder.

2. Large output torque.

3. Motor heating is small and energy consumption is low.

4. Smooth running, small vibration and noise.

5. The corresponding speed is fast, suitable for frequent start and stop.

Leadshine Hybrid Servo Motor 86HBM80H-1000 Technical Parameter

Motor Shaft Diameter | 14mm

Holding Brake | without

Holding Torque | 8 N.m

Rated Phase Current | 4.8 A

Motor Length | 140mm

Rotor Moment of Inertia | 2.8 kg/cm2

Motor Weight | 4KG

Axial Runout | Maximum 0.025mm under load of 5N

Radial Runout | Maximum 0.075mm under load of 10N

Leadshine Hybrid Servo Motor 86HBM80H-BZ-1000 Technical Parameter

Motor Shaft Diameter | 14mm

Holding Brake | with

Holding Torque | 8 N.m

Rated Phase Current | 6 A

Motor Length | 173mm

Rotor Moment of Inertia | 3.1 kg/cm2

Motor Weight | 4.8 KG

Axial Runout | Maximum 0.025mm under load of 5N

Radial Runout | Maximum 0.075mm under load of 10N

Enquire now if you have interest!
