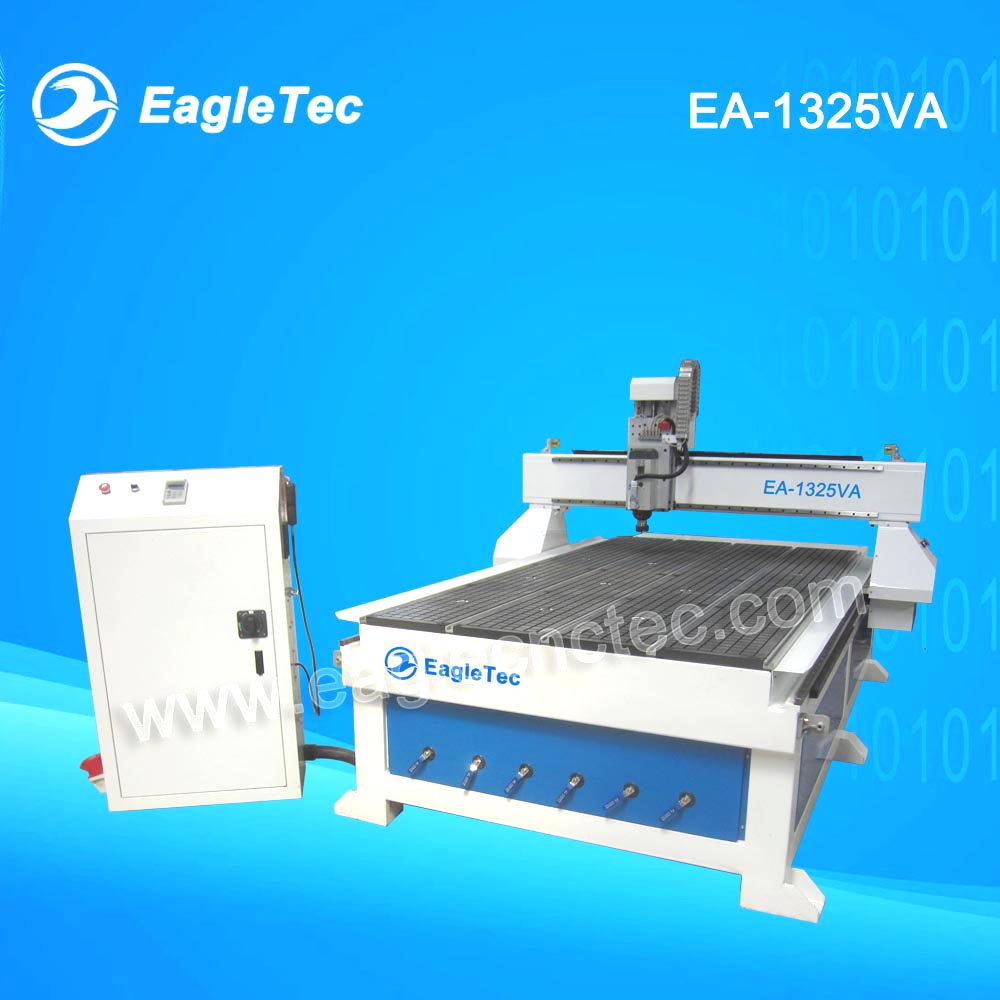

The machine for sale here is 4x8 cnc router EA-1325VA from EagleTec. (Check our new design out here: 3 axis cnc router EA-1325VA) It is a basic cnc router machine with single air cooled 3.0kw Italian HSD spindle. Router table is perfect combination of PVC vacuum and aluminum t-slot, two in one design; it is not only vacuum adsorption table but also a clamp type table which is an ideal solution to meet the clamping requirements of different router working projects; size of table is 4x8 feet. The motion unit is adopted high torque step motor 450B. Motion controller is user-friendly Richauto A11, which is an easy controller even for a beginner.

Application

4x8 cnc router is good for woodworking, sign making, slatwall panel grooving, art works carving, non-metallic materials cutting and more.

Machining Materials

Materials good for 4x8 cnc routers are all kinds of non-metallic materials.


EagleTec CNC Router 4x8 Machine Features

1) It is a basic machine of EagleTec cnc router with single head.

2) Router table is two in one design, which is not only vacuum adsorption table but also a clamp type table to meet different clamping requirements.

3) Router frame is welded with seamless steel structure; processed vibrating stress relief (VSR) to reduce residual stress; and it is supported by 6 legs with adjustable leveling feet.

4) Router table size is 4x8 feet. More table size options for you: 4x4 cnc router kit, 5x10 cnc router

5) The X and Y axis motion is via helical type rack and pinion, which is hardened for extremely

long life and ground for a very good accuracy; The Z axis of the 4x8 cnc router is driven by a hardened rolling antibacklash ball screw.

6) Linear guides of all three axes are Taiwan HIWIN or PMI which allow for good accuracy under high feeding speed.

7) Y-axis is driven by dual motors, one on each side.

8) Matched CAM software: ArtCAM, UcanCAM, Type 3 and tec.


4x8 CNC Router Technical Parameters

Model | EagleTec EA-1325VA

Working Size | 4x8 feet

Feeding Height | 200mm

Other Function | re-carving after break point or power failure

Lubrication | Central lubricator

Machining Accuracy | 0.1mm / 100mm

Max. Idle Speed | 35,000mm / min

Spindle | Italian HSD spindle, 3.0kw, air cooled

CNC Controller | Richauto DSP A11

Vacuum Pump | 7.5kw, water ring vacuum pump with strong flow rate

Driving Motor | Stepping

XY Transmission | Helical rack and pinion

Z Transmission | Rolling ball screw

Linear Guide | HIWIN or PMI original products

Working Power | 380VAC/50-60 Hz, 3Ph 4 Wires

Net Weight | 1200KGS

To learn more this 4x8 cnc router, please inquire now.
