Industrial 5x10 Affordable CNC Plasma Table with 105amp Hypertherm Generator 1500x3000mm
Product Name:
Industrial 5x10 Affordable CNC Plasma Table with 105amp Hypertherm Generator 1500x3000mm
No. :
EagleTec EA-PL1530 | Working size 1500x3000mm (5x10 feet) | Arc voltage T.H.C | Starfire Plasma Controller
:
:

Brief: cheap plasma table EagleTec EA-PL1530 is a standard version model; with cutting size 1500x3000mm, convert into English unit is 5x10 feet. Drawers on the side of the machine base are designed for cleaning the slag easily. This computer plasma cutter is a good cut solution for metal plates or sheet metal within 1500x3000mm size range.
5x10 plasma metal cutting machine 1500x3000mm

Plasma Power: the affordable cnc plasma cutter EA-PL1530 is equipped with 105amp Hypertherm plasma generator. Suggested max. cutting thickness is 18mm (refers to quality cut on machine here).

Plasma Torch Height Control System: standard version includes the arc voltage torch height controller which ensures quality cut even on uneven metal sheets.
plasma arc voltage torch height control system

Linear Guide: standard version is round type; square type is as optional configuration.

Environmentally friendly design: with fans for dust and smoke moving and drawers for cleaning slag easily.

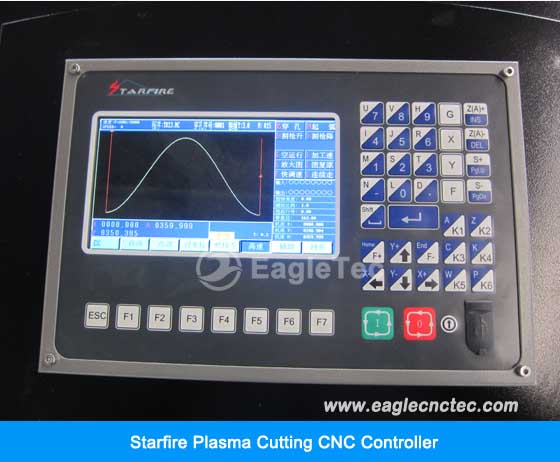

Plasma Metal Cutting Machine CNC Controller: adopts Starfire which is specially for plasma cutting purpose, with LED display, English menu; the system also has a pattern library inside, just select the pattern you want and input several machining parameters, the cnc plasma cutter will start work for you.
plasma metal cutting machine cnc controller


Software providing along with the plasma table is FASTCAM in English. This software is specially designed for plasma cutting.

CNC plasma table consumables provided to users from EagleTec contains plasma cutting nozzles 20 piece and electrode 20 piece.

Concerning User Guide: after received the machine, we will guide you from beginning until your production starts. Meantime, full set user manual in English regarding EA-PL1530 from hardware to software is provided to you together with the plasma machine. It is a specific, practical, step by step manual for your right machine, not a general, meaningless one for many models.

Technical Parameter

Model

EagleTec EA-PL1530

Cutting Size

1500x3000mm (5x10 feet)

Plasma Cutting Thickness

1.5 ~ 18mm

Machine Type

cnc plasma table - industrial cut solution

Construction Type

heavy duty, standard size

Linear Guide

round type

Drawers on Side

3 pieces

Plasma Table Type

burn table with smoke removing function

Plasma Source

105 amp, Hypertherm - USA

CNC Controller

STARFIRE

Communication Code

G Code

Communication interface

USB

Arc Voltage Torque Height Controller

Include

Driving Motor

Stepper

Transmission

Rack and pinion

Travelling Speed

8,000 mm/min

Plasma Voltage

AC380V, 3Ph

Plasma Controller Voltage

AC220V, Single Ph

CNC Plasma Cutting Software

FASTCAM in English


To learn more the cheap plasma table, please inquire now

To check more other plasma machine models, please click more cnc plasma cutters here

Please watch the video below to understand this machine better.
