Product Name:
1325 Wood Door Making CNC Router Machine with Auto Tool Changer by Pneumatic Cylinder
No. :
EA-1325PATC2
 |
Model. EA-1325PATC2
CNC router machine with auto tool changer by pneumatic cylinder is widely used for the jobs which have to be finished by multi types of cnc bits.
Application
Material: Solid wood, MDF, plastic, PVC, acrylic, and other nonmetal materials.

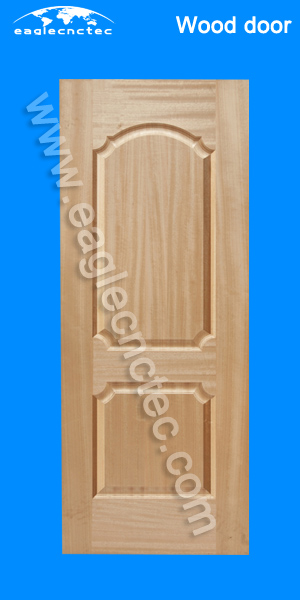

Field: Cabinet, Wood door, Wardrobe and etc.
Features of 1325 Wood Door Making CNC Router Machine with Auto Tool Changer by Pneumatic Cylinder
l It’s a high performance-to-price ratio auto tool changing machine, 2 spindles can be mounted with 2 different kinds of tools, and the spindle switched automatically via pneumatic cylinder.
l T-slot Vacuum table with 6 vacuum zones, which can adsorb different size materials.
You can also fix the work piece by clamp.
l Frame is welded with seamless steel structure; processed by high temperature
tempering treatment and vibrating stress relief (VSR) to reduce residual stress; and it is supported by 6 legs with adjustable leveling feet.
l Beam is made of steel. A steel beam is superior to a aluminum in it’s ability to
suppress and absorb the forces created during cutting. It is internally ribbed in order to stiffen the assembly; this design is minimizing the vibration while increasing accuracy and repeatability.
l The X and Y axis motion is via a rack and pinion drive, which is hardened for
extremely long life and ground for a very good accuracy; The Z axis is driven by a hardened Germany rolling antibacklash ball screw.
l Each axis of motion is supported on high precision linear guide ways. Hiwin linear
guides allow for higher feed speeds and a better quality of cut.
l The Y-axis uses a dual drive, one for each side of the gantry.
l Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/UcanCAM etc.
l Has the function of re-carving after break point and power failure.
l All the linear guides are centrally lubricated from a central system.
Technical Parameter of 1325 Wood Door Making CNC Router Machine with Auto Tool Changer by Pneumatic Cylinder
|
Working Size (X Y Z) |
1300×2500×200 mm |
|
Driving Motor |
Stepping |
|
Controller |
NC Studio |
|
Command |
G-code |
|
Max.Traveling Speed |
35,000 mm/min |
|
Max.Working Speed |
20,000 mm/min |
|
Work-Holding |
By vac-sorb or clamp, both available |
|
Vacuum Pump |
5.5KW, water-ring, 230CBM/hour flow rate |
|
X Y Transmission |
Helical rack and pinion , HIWIN square linear guide way |
|
Z Transmission |
Taiwan TBI rolling ballscrew , HIWIN square linear guide way |
|
Spindle |
3.5kw , air cooling, 0-24000 rpm variable speed |
|
Collet Size |
ER25, available diameter of cutter φ3.175-φ16mm |
|
Working Power |
AC 380V/50-60Hz, 3 Ph 4 Wire |
|
Max.Power Consumption |
17KW |
|
Net Weight |
1400 KGS |
|
Packing |
Plywood case suitable for sea shipment |
If you prefer a similar machine but with three-spindle, please click to check:
Three-spindle wood door making cnc router machine with auto tool changer by pneumatic cylinder
